A studio plotter is a large-format machine that prints full-scale patterns and markers from your CAD software onto paper or light card. Some models, called plotter-cutters, also cut those patterns out. You need one if you design or grade in-house and want to stop outsourcing pattern printing, cut turnaround times, and keep your intellectual property under your own roof.
What is a studio plotter?

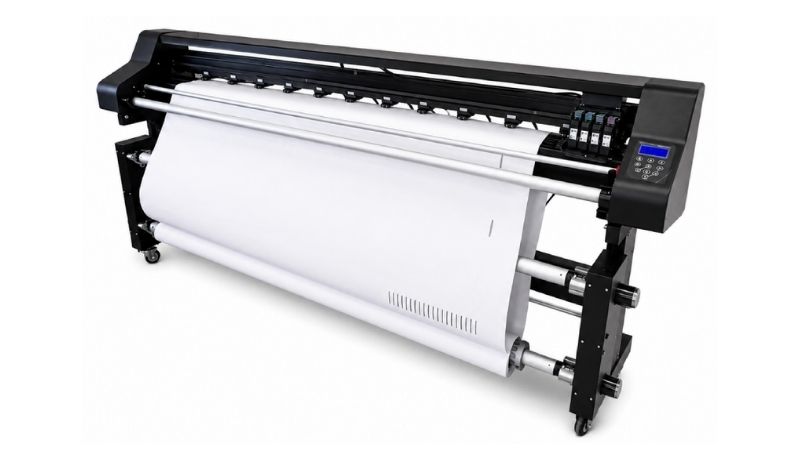

A studio plotter is a large format printer built to output design files at full, real-world scale. Instead of shrinking a pattern onto A4, it prints it life-size onto continuous plotter paper rolls, ready to trace, sample, or cut.
In a design studio, that usually means printing patterns, graded nests, and markers straight from CAD. The device sits between your software and your cutting table, turning digital files into physical templates.
There are two broad types. A studio plotter printer only prints, while a plotter-cutter both prints and cuts. Knowing which one you need is the single biggest decision in this process.
What is the difference between a studio plotter printer and a plotter-cutter?
This is where most confusion starts, so it is worth being precise.
A studio plotter printer is a large-format inkjet device. It lays down ink onto paper to produce technical drawings, CAD drawings, and full-scale patterns. Our PP range of plotter printers is built for exactly this: printing full-scale patterns, graded nests, and markers straight from your CAD software onto continuous plotter paper, ready to trace, sample, or send to production.
A cutting plotter (or plotter-cutter) adds a knife. In addition to printing, it cuts the shape out of the paper or card using an integrated blade, so you skip manual cutting entirely.
Our own SPC range of studio plotter-cutters at Vetigraph uses inkjet technology with a continuous paper feed and an integrated tangential knife that cuts patterns directly from the machine to eliminate manual cutting bottlenecks. They handle media from 80gsm paper up to 300gsm cardstock, with plot speeds reaching 180m² per hour on the four-head configuration.
A pattern studio plotter is not the same as a vinyl cutting plotter used in signage and craft. Both apply cutting force through a knife, but a vinyl cutting machine is built for adhesive film and short runs, not full-scale apparel or upholstery patterns.
If you only need paper templates to hand-cut or send to a factory, a plotter printer is enough. If you want printing and cutting in one pass, choose a plotter-cutter.
What does a studio plotter do in a CAD and pattern-making workflow?
A studio plotter for CAD and pattern making is the bridge between design and production. Here is where it fits.
- You create and grade patterns in CAD software.
- You nest those patterns into an efficient marker to save fabric.
- The plotter prints the full-scale pattern or marker onto plotter paper.
- You cut it out, sample it, or send it to production.
File format matters here. Pattern data typically moves as DXF, and our software also exports to Adobe Illustrator, so files flow cleanly between design and output. For plotting itself, HP-GL/2 is the format to use; unlike PDF or TIFF, it guarantees your patterns print to true scale.
The plotter is only as good as the file feeding it, which is why we build our pattern cutting and grading software and nesting and marker-making software to integrate directly with our hardware. If you are digitising existing paper patterns first, our photo digitising systems turn them into editable files ready to plot.
Do you really need a studio plotter for your design workflow?
Not every studio does. Be honest about your volume and your bottlenecks before you invest.
You probably do need one if:
- You currently outsource pattern printing and wait days for turnaround.
- You produce bespoke or made-to-measure work and reprint patterns often.
- You want to keep patterns, your intellectual property, in-house rather than with a bureau.
- You are scaling, and manual tracing or cutting has become a bottleneck.
- You run high-volume or large-scale production and need repeatable accuracy.
You might not need one yet if you produce only a handful of styles a year, have no in-house CAD, or can cover occasional printing through a service bureau cost-effectively.
The tipping point is frequency. Once printing patterns are a weekly task rather than an occasional one, owning a machine usually pays for itself in time and reliability.
How do you choose a studio plotter?
Knowing how to choose a studio plotter comes down to matching the machine to your work, not buying the biggest one available. We assess these factors with every client:
- Print width and scale: Match the roll width to your largest patterns. Entry-level CAD printers often top out around 24 to 36 inches, while professional pattern plotters go considerably wider to handle large-scale nests in a single pass.
- Print quality: Resolution affects line clarity. You want crisp, unbroken pattern lines and legible text at full scale, so check a machine’s print resolution against the level of detail your patterns demand.
- Printing only, or printing and cutting: Decide whether an integrated knife and its cutting force are worth the investment for your materials.
- Speed and volume: For high-volume output, plot speed matters. Entry-level printers are measured in seconds per plot, while production plotter-cutters are measured in square metres per hour.
- Plotter paper and media range: Confirm the machine takes the plotter paper rolls and weights you use daily, from thin marker paper to heavier card.
- Software and file compatibility: The plotter must read your file formats and talk to your CAD without workarounds.
- Connectivity: Flexible connectivity keeps the plotter slotted into however your studio already works. Ours print wired, wirelessly, and over a network, so the machine fits your setup rather than forcing you to change it.
- Support and training: A plotter is a long-term production asset, so response times and training count as much as the spec sheet.
For a print-only setup, our PP range of plotter printers may suffice. For an all-in-one solution, explore our SPC range of studio plotter-cutters, and for full automation, our digital cutting room technology.
How much does a studio plotter cost in the UK?
Studio plotter pricing in the UK varies widely by type and capability, so treat any single figure with caution.
Professional pattern plotter-cutters are a different category. Because they are configured to your materials, width, and volume, they are quoted individually rather than sold at a fixed shelf price.
For current, accurate UK pricing on a machine suited to your studio, contact us for a tailored quote. We will also point you to the right plotter paper and consumables to keep it running.
Studio plotters: what to remember before you buy
- A studio plotter machine prints full-scale patterns and markers from CAD onto paper.
- A studio plotter printer only prints; a plotter-cutter also cuts, using an integrated knife.
- Plotters for design studios earn their place once pattern printing becomes a regular, in-house need.
- To choose well, match print width, quality, speed, media, and software compatibility to your actual workflow.
- Pattern plotter-cutters are quoted per configuration, so ask us for current UK pricing.
