For fashion design studios, garment manufacturers, and pattern-making departments, the gap between design and production floor is where time and money are most frequently lost. The SPC-180 CAD plotter-cutter is built to close that gap. Combining high-speed pattern plotting with integrated knife cutting, a dual-media system, and compatibility with every major CAD platform, it removes manual cutting processes entirely while maintaining the accuracy that professional production demands. This guide covers everything you need to know: who the SPC-180 is designed for, how it performs against traditional methods, what its technical specifications deliver in practice, and why it has become one of the most trusted plotter-cutters in UK fashion production.
What Is the SPC-180 CAD Plotter-Cutter and Who Is It Designed For?

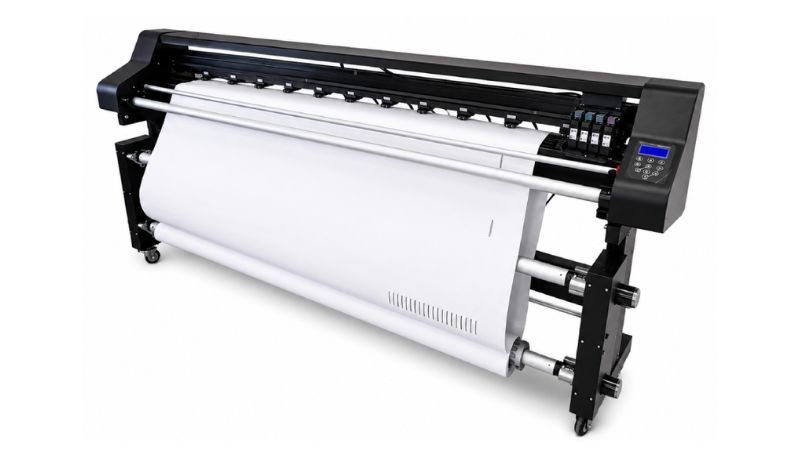

The SPC-180 is a high-performance pattern plotting machine that combines paper plotting and integrated knife cutting in a single unit. It is designed for environments where speed, accuracy, and workflow continuity are non-negotiable.
It is the right fit for:
- Fashion design studios requiring rapid pattern output across multiple styles
- Garment manufacturers running high-volume production schedules
- Pattern-making departments managing frequent size range updates
- Universities and fashion laboratories need reliable, professional-grade equipment
- Textile production facilities looking to reduce reliance on manual cutting processes
The machine accommodates media widths up to 185cm and supports the full range of pattern formats used across the industry, making it genuinely versatile rather than niche.
Why Do Fashion Studios Need a High-Speed CAD Plotter?
Manual pattern plotting and cutting is slow, inconsistent, and increasingly incompatible with the pace modern production demands. Fashion brands that digitise their production workflows reduce time-to-market by up to 50%, a figure that becomes meaningful very quickly when seasonal windows are shrinking.
A dedicated fashion CAD plotter eliminates the bottlenecks that manual methods create:
- Inconsistent line quality across long pattern runs
- Operator fatigue is affecting cut accuracy on high-volume days
- Delays caused by switching between separate plotting and cutting equipment
- Errors are introduced when transferring patterns from digital to physical formats manually
The SPC-180 addresses each of these directly and without compromise.
How Fast Is the SPC-180 Compared with Traditional Plotting Methods?
Plot speed is where the SPC-180 makes its most immediate impression. It delivers up to 180 m² per hour of output, a figure that fundamentally changes what a pattern-making department can achieve in a single shift.
To put that in context:
- A traditional flatbed plotter typically operates at a fraction of that throughput
- Manual pattern tracing and cutting cannot meaningfully compete at volume
- Higher plot speeds mean more patterns processed per day without additional staffing
For garment manufacturers working across multiple colourways, size ranges, and seasonal collections simultaneously, this level of throughput is not a luxury. It is a baseline requirement for staying competitive.
What Makes the SPC-180 Dual-Media System Different?
One of the most operationally significant features of the SPC-180 is its dual-media system, which allows simultaneous loading of both paper and card stock. In practice, this means both paper and card stay loaded on the machine at the same time, ready to go whenever a job calls for either. Switching between them no longer means wrestling a heavy roll off the plotter, off the bar, and reloading a new one in its place, a task that, given the weight of the rolls involved, often takes two people to manage safely. With the SPC-180, that entire process disappears. The operator simply feeds the required media into the print area and continues working, without the machine ever needing to be stripped down and rebuilt for a media change.
The production benefits are direct:
- Reduced machine downtime between pattern runs
- Minimal interruption when switching from draft paper patterns to card cutting
- Greater flexibility when handling mixed workloads across different pattern types
- Sustained workflow continuity during high-demand production periods
For studios managing multiple projects simultaneously, the dual-media plotter capability removes one of the most common sources of unnecessary delay in the pattern room.
How Does the Integrated Tangential Knife Improve Pattern Accuracy?
The SPC-180 is not simply a plotting machine with a blade added as an afterthought. Its integrated tangential knife-cutting system is engineered to maintain the blade’s direction relative to the cut path at all times, setting it apart from drag-knife alternatives.
What this delivers in practice:
- Clean, accurate cuts on curved and complex pattern shapes
- Consistent results across card, paper, and light technical materials
- Reduced edge fraying and distortion on intricate seam lines
- Reliable repeatability across long production runs
For pattern-making equipment to perform at a professional level, the cutting mechanism must match the plot’s quality. The SPC-180 achieves this through tangential knife geometry rather than relying on material drag to steer the blade.
Which CAD Software Is Compatible with the SPC-180?
Compatibility is a legitimate concern for any studio considering new apparel production workflow equipment, particularly where existing CAD investments are significant. The SPC-180 supports HPGL files as standard, which means it integrates directly with all major CAD platforms currently in use across the industry.
Compatible systems include:
- VetiGraph
- Gerber
- Lectra
- Optitex
- Investronica
- Assyst
- Toray
- TUKA
This breadth of compatibility means studios do not need to change their existing CAD software to adopt the SPC-180. The machine fits into established workflows rather than disrupting them, and VetiGraph users benefit from native integration without any additional configuration.
What Are the Technical Specifications of the SPC-180 Plotter?
For procurement and technical teams evaluating the SPC-180 against alternatives, here are the key specifications:
- Plot speed: Up to 180m² per hour
- Media width: Up to 185cm
- Cutting system: Integrated tangential knife
- Media types: Paper and card stock via a dual-media system
- File format support: HPGL, compatible with all major CAD platforms
- Primary applications: Pattern plotting, marker plotting, card cutting
These specifications position the SPC-180 firmly in the professional tier of CAD plotting systems, suitable for continuous production use rather than occasional studio output.
How Can the SPC-180 Improve Apparel Production Efficiency?
Efficiency gains from the SPC-180 are felt across the entire apparel production workflow, not only in the pattern room. When plotting and cutting are handled by a single integrated machine at high speed, the downstream effects include:
- Faster sample development cycles
- Reduced lead times from pattern approval to the cutting room
- Lower labour costs associated with manual cutting and tracing
- More consistent pattern quality across production batches
- Fewer errors are introduced between the digital file and the physical pattern
Investment in fashion production technology is accelerating globally as manufacturers respond to tightening margins and sustainability pressures. The SPC-180 supports both objectives simultaneously by reducing waste and increasing throughput.
Is the SPC-180 a Cost-Effective Investment for Fashion Manufacturers?
Evaluating capital equipment solely by purchase price misses the bigger picture. The SPC-180 reduces ongoing costs in several measurable ways:
- Fewer labour hours spent on manual pattern cutting and tracing
- Reduced material waste from more precise knife cutting
- Lower error rates and associated rework costs
- Elimination of separate plotting and cutting equipment and their maintenance overhead
- Faster throughput means more capacity from existing floor space
For garment manufacturing equipment decisions, the operational savings the SPC-180 delivers typically make a compelling case well within standard payback period expectations.
Why Is the SPC-180 One of the Most Popular Plotter-Cutters for Fashion Production?
The SPC-180 has earned its position through consistent, reliable performance across a wide range of production environments. Its combination of high plot speed, dual-media flexibility, tangential knife accuracy, and universal CAD compatibility makes it one of the most practically capable studio plotter-cutters available to UK fashion and textile businesses today.
It does not ask studios to compromise: not on speed, not on accuracy, and not on compatibility with the software they already use.
Discover What the SPC-180 Can Do for Your Studio
In an industry where precision and speed define success, the technology behind your design room matters more than ever. VetiGraph has been powering fashion and textile manufacturers with cutting-edge CAD/CAM software, CNC fabric cutters, and PLM solutions for over 35 years, trusted by design studios, global brands, and production teams right across the UK. From first cut to final product, our expert team is with you every step of the way.
Ready to work smarter? Contact us by calling 01273 672400. Find us at Suite 1, 9–10 Jew Street, Brighton, BN1 1UT.
